14A - Plain BS Ferrule Medium

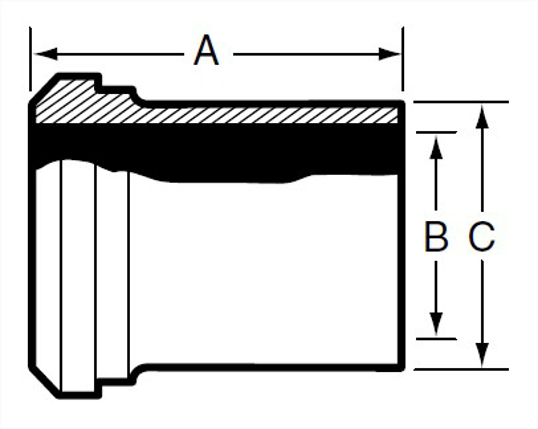

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	Product Weight
1	1.375	34.93	0.87	1	25.4	0.12
1.5	1.5	38.1	1.37	1.5	38.1	0.22
2	1.5	38.1	1.87	2	50.8	0.34
2.5	1.75	44.45	2.37	2.5	63.5	0.48
3	1.75	44.45	2.87	3	76.2	0.84
4	1.75	44.45	3.834	4	101.6	1.04

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14A1.0 REV1.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14A7
Wayland Part Number	W14A
Dixon Part Number	14A
Sanitary Solutions Part Number	SS14A
Sanitube Part Number	14A
A, in.	1.375
A, mm.	34.93
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.12

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14A1.5 REV1.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14A7
Wayland Part Number	W14A
Dixon Part Number	14A
Sanitary Solutions Part Number	SS14A
Sanitube Part Number	14A
A, in.	1.5
A, mm.	38.1
B, in.	1.37
C, in.	1.5
C, mm.	38.1
Product Weight	0.22

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14A2.0 REV1.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14A7
Wayland Part Number	W14A
Dixon Part Number	14A
Sanitary Solutions Part Number	SS14A
Sanitube Part Number	14A
A, in.	1.5
A, mm.	38.1
B, in.	1.87
C, in.	2
C, mm.	50.8
Product Weight	0.34

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14A2.5 REV1.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14A7
Wayland Part Number	W14A
Dixon Part Number	14A
Sanitary Solutions Part Number	SS14A
Sanitube Part Number	14A
A, in.	1.75
A, mm.	44.45
B, in.	2.37
C, in.	2.5
C, mm.	63.5
Product Weight	0.48

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14A3.0 REV1,STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14A7
Wayland Part Number	W14A
Dixon Part Number	14A
Sanitary Solutions Part Number	SS14A
Sanitube Part Number	14A
A, in.	1.75
A, mm.	44.45
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	0.84

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14A4.0 REV1.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14A7
Wayland Part Number	W14A
Dixon Part Number	14A
Sanitary Solutions Part Number	SS14A
Sanitube Part Number	14A
A, in.	1.75
A, mm.	44.45
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	1.04

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14A1.0 REV1.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14A7
Wayland Part Number	W14A
Dixon Part Number	14A
Sanitary Solutions Part Number	SS14A
Sanitube Part Number	14A
A, in.	1.375
A, mm.	34.93
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.12

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14A1.5 REV1.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14A7
Wayland Part Number	W14A
Dixon Part Number	14A
Sanitary Solutions Part Number	SS14A
Sanitube Part Number	14A
A, in.	1.5
A, mm.	38.1
B, in.	1.37
C, in.	1.5
C, mm.	38.1
Product Weight	0.22

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14A2.0 REV1.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14A7
Wayland Part Number	W14A
Dixon Part Number	14A
Sanitary Solutions Part Number	SS14A
Sanitube Part Number	14A
A, in.	1.5
A, mm.	38.1
B, in.	1.87
C, in.	2
C, mm.	50.8
Product Weight	0.34

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14A2.5 REV1.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14A7
Wayland Part Number	W14A
Dixon Part Number	14A
Sanitary Solutions Part Number	SS14A
Sanitube Part Number	14A
A, in.	1.75
A, mm.	44.45
B, in.	2.37
C, in.	2.5
C, mm.	63.5
Product Weight	0.48

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14A3.0 REV1,STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14A7
Wayland Part Number	W14A
Dixon Part Number	14A
Sanitary Solutions Part Number	SS14A
Sanitube Part Number	14A
A, in.	1.75
A, mm.	44.45
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	0.84

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14A4.0 REV1.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L14A7
Wayland Part Number	W14A
Dixon Part Number	14A
Sanitary Solutions Part Number	SS14A
Sanitube Part Number	14A
A, in.	1.75
A, mm.	44.45
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	1.04
