VNE Stainless | HEAVY DUTY CLAMP SINGLE PIN HINGE/HOLE IN THE WINGNUT

Attribute name	Attribute value
Size	8
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	8
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf

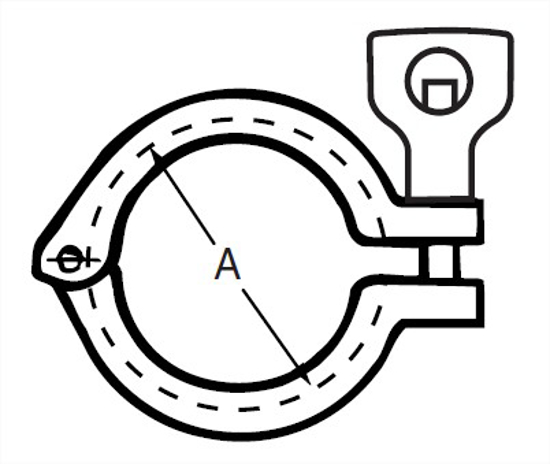

A, in.	8.57
A, mm.	217.68
Product Weight	1.301
Cad Model File	13MHHM8.0-H.STEP

Size

8

Connections

Clamp

Wall Thickness

0.065

Material Test Reports

COC Available for 304 Materials

Pressure Rating

See PSI Service Ratings for Clamps

Catalog File

Fittings Catalog.pdf

A, mm.

217.68

Cad Model File

13MHHM8.0-H.STEP

HEAVY DUTY CLAMP SINGLE PIN HINGE/HOLE IN THE WINGNUT - copy
